DairyLight product and technical information

Specifications, dimensions, installation and official results

70W Smart Linear Lights

The Smart Linear LED Light is aimed at the end-user - being easy to install, robust, energy saving and environmentally friendly.

Lamp housings are 94V0 fireproof and anti-UV, with higher light transmittance and uniform luminance.

With strong corrosion resistance, the lamps are suitable for harsh environments and are unaffected by water, oil and dust. The lights can also resist 4KV lightning strikes.

✔ DairyLight is:
A unique white, blue and red LED lighting system scientifically proven to enhance a cow's performance and general wellbeing all year round.


✗ DairyLight is not:
A standard off-the-shelf white LED light. Standard white LED lights do not provide enough blue 450 NM light to replicate summer sunshine and will not provide red light for night time supervision.


Light Options

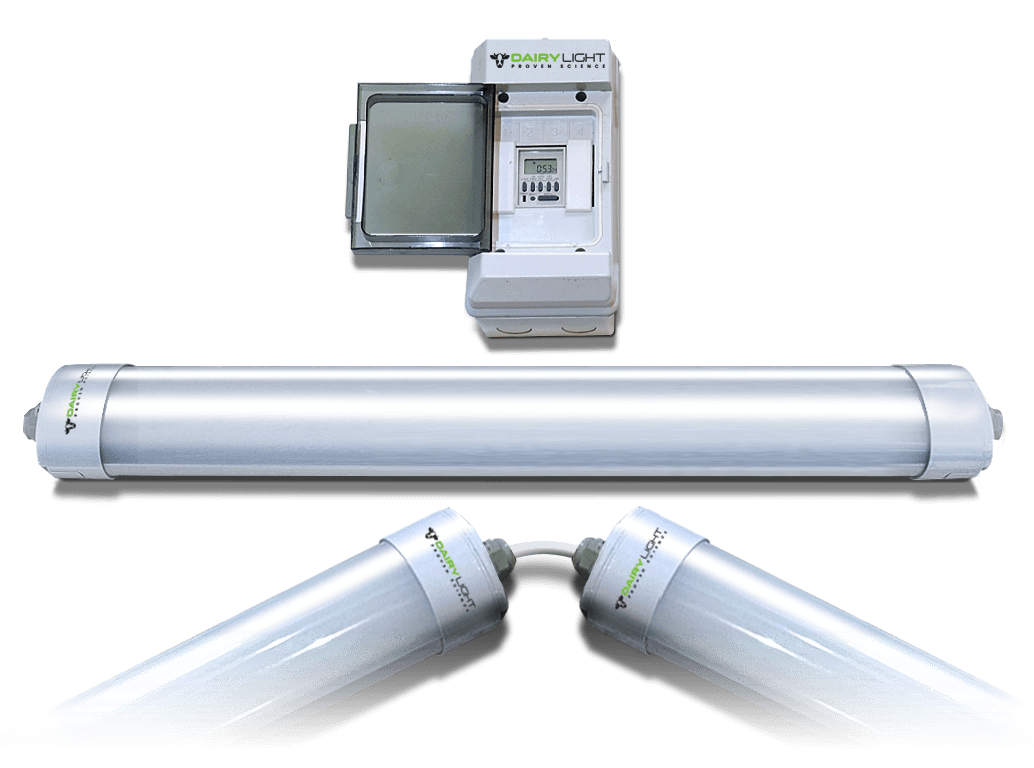

  • DairyLight systems include Blue, White and Red LED lights with timer.

  • Control day and night light timing
  • Switch from Blue & White daylight to Red night light
  • Daylight control saves electricity

  • Systems can be installed by a qualified electrician or we can install for you. Call for further information.

Product Specifications

Item No.WS-LI15P70W-0003
Power 70W
Size 150cm/5ft
Chip Qty520pcs(Center PCB with Blue & Red LED)
Chip TypeEpistar Chip, SMD2835
CRI Ra80-85
Lumen efficiency130lm/W
CCT6000-6500K
LED Driver 0-10V AGT Driver, Pf>0.9, AC100-277V
Function Option 0-10V Dimmable
OperatingIP65, IP69K, IK10
Life Span L70 (@40 deg. C)50000Hours
CertificationCE&RoHS
Warranty5 years

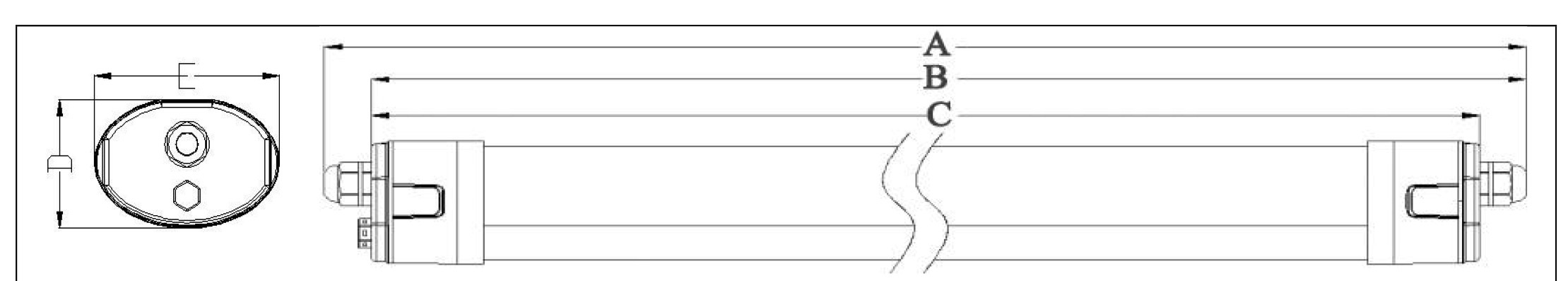

Product Dimensions

Item NumberWS-LI15P70W-0003
A1560mm
B1530mm
C 1500mm
D77mm
E115mm

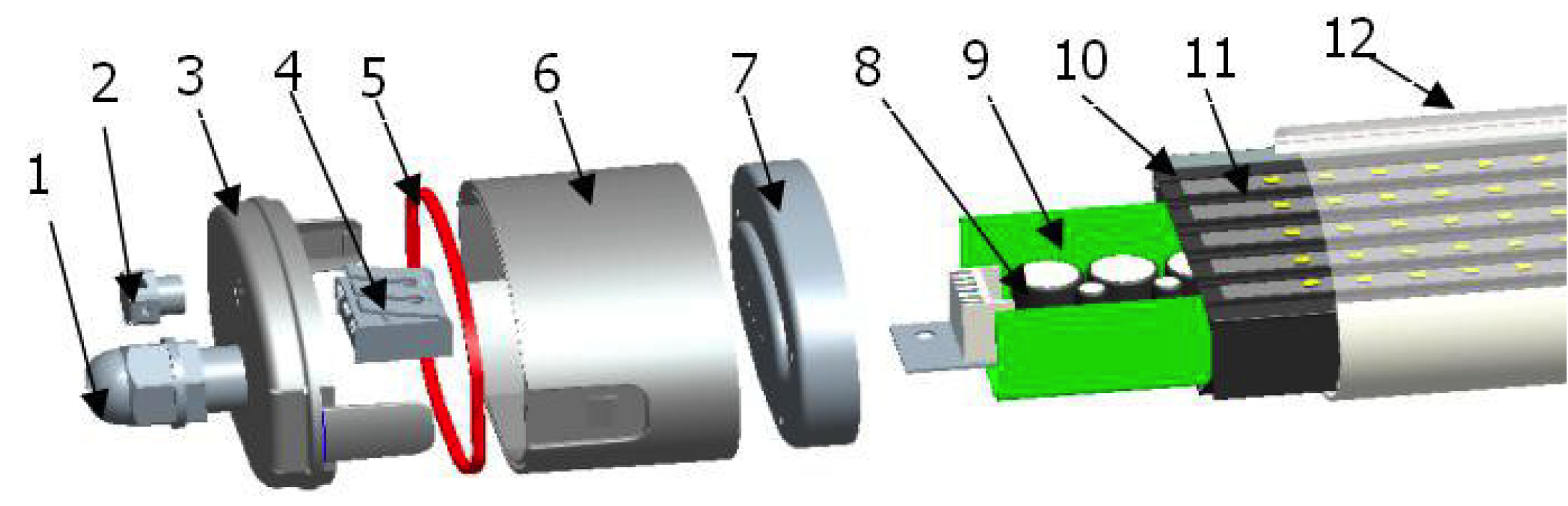

Product Structure

Number and NameMaterial and Quantity
1. Waterproof connector PC 1pcs PC = 1pcs
2. Breather PC = 1pcs
3. End cover94V0 material = 2pcs
4. Fast connectorPC = 1pcs
5. Waterproof ringPC = 2pcs
6. End cap94V0 material = 2pcs
7. Waterproof ringPC = 2pcs
8. DriverPC+Aluminium = 1pcs
9. Box of driver94V0 material = 1pcs
10. Internal Aluminum HousingAluminum = 1pcs
11. PCB LEDsAluminum = 5pcs
12. Lamp body94V0 material = 1pcs

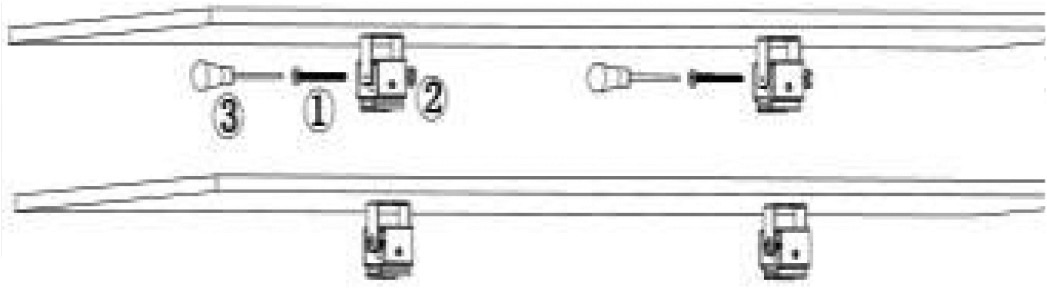

Ceiling Installation

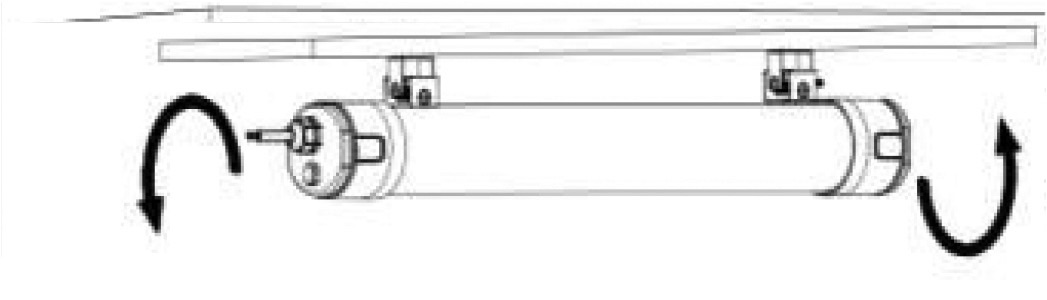

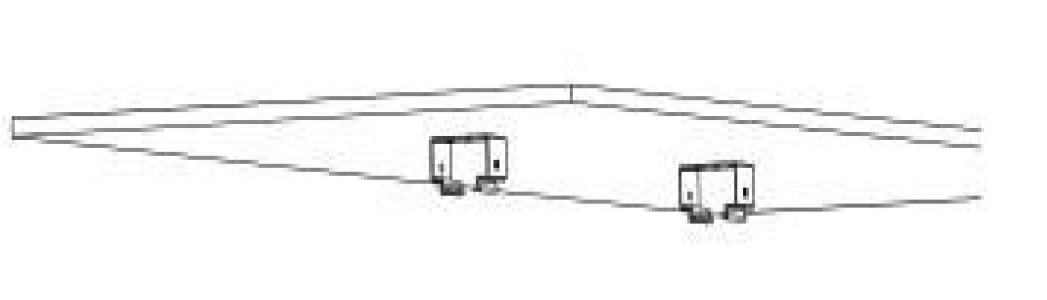

Ceiling Installation Rotating Clips

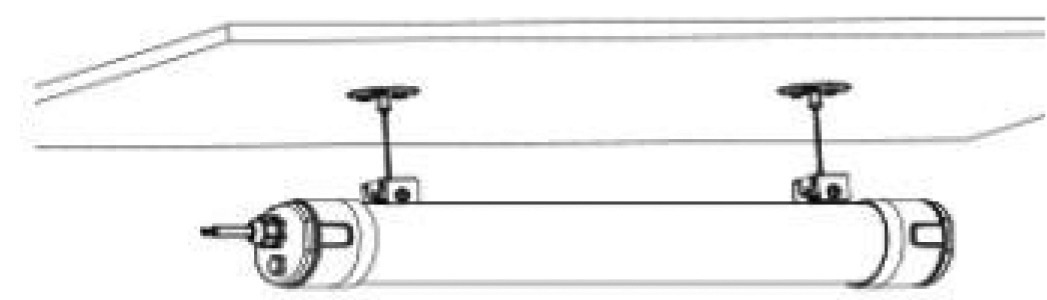

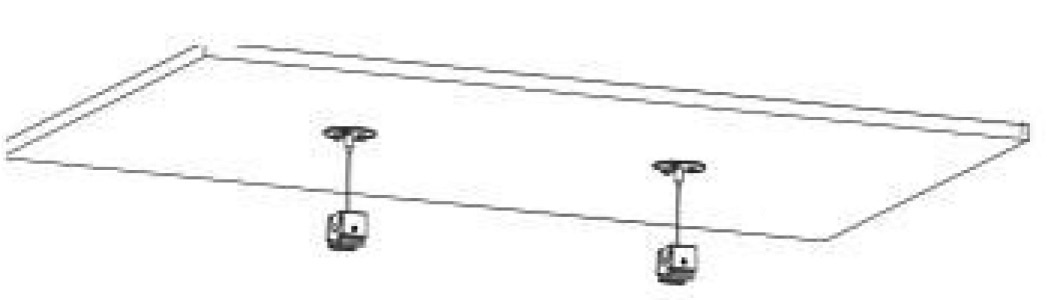

Suspended Ceiling

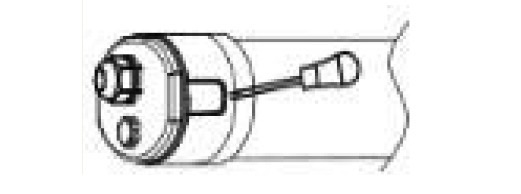

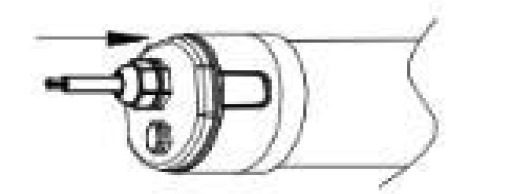

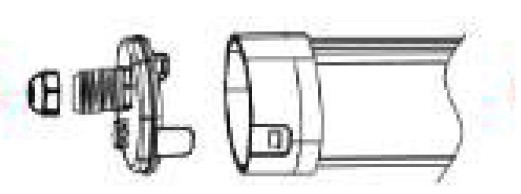

Simple 'In Series' Connection

1
2
3
4
